CMS 25kVA UPS, Scalable to 200kVA, 400V
Sicon developed the CMS rackmount UPS system to fit in narrow spaces in server rooms or other similar situations. The rack-mounted UPS system can be embedded into standard 19 inch cabinets and integrated into small or medium-sized server rooms or specific cold/hot aisle server rooms.
CMS/A-200 Power units
- Input/output wires
- 200kVA STS (static switch)
- Maintenance bypass line
- System monitoring (above eye sight)
- Maximum power of 200kVA/180kW
- 3-phase input/output power connection
- 400/230VAC, 50Hz
- SNMP port
- Applies to any 19 inch 600*800 (W*H) cabinets
- Height: 16U (1U=44.45mm)
CMS/A-100 Power units
- Input/output wires
- 100kVA STS (Static Switch)
- Maintenance bypass line
- System monitoring (above eye sight)
- Maximum power of 100kVA/90kW
- 3-phase input/output power connection
- 400/230VAC, 50Hz
- SNMP port
- Applies to any 19 inch 600*800 (W*H) cabinet
- Height: 9U

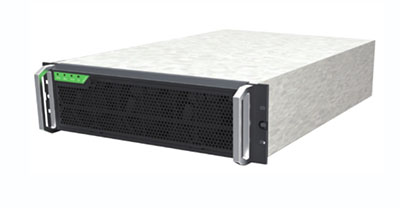

CM/A100F Power module set
- Maximum of four 25kVA/22.5kW UPS modules
- Maximum power of 100kVA
- CMS/A-100 power unit could combine with 1 CM/A100F power module set
- CMS/A-200 power unit could combine with 2 CM/A100F power module sets
- 3-phase input/output power connection
- 400/230VAC, 50Hz
- Applies to any 19 inch 600*800 (W*H) cabinet
- Power module set height: 12U
CM/A50F Power module set
- Maximum of two 25kVA/22.5kW UPS modules
- Maximum power of 50kVA
- CMS/A-100 power unit could combine with 2 CM/A50F power module sets
- 3-phase input/output power connection
- 400/230VAC, 50Hz
- Applies to any 19inch 600*800 (W*H) cabinet
- Power module set height: 6U
UPS System Technical Parameters
Module
| Module model | CM/A25 |
| Module power | 25KVA |
| Power connection | 3/1, 3/3, 1/1, 1/3 phase |
| Module dimension (H×W×D)mm | 133×482×465 |
| Weight (kg) | Approximate 20 kg |
| Module charging | Each module provides 6kW charging power |
| Input power factor | ≥0.99 |
| Overload ability | 135% |
| Maximum heat dissipation power | 1187W |
| THDI (%) | ≤3% |
Mains Input
| Input mode | 3-phase +N +E, 1-phase +N +E |
| Input voltage | 380V/220V±20%、400V/230V±20%、415V/240V±20% |
| Input frequency | 50Hz±10%、60Hz±10% |
| Power woke-in (Sec.) | 60sec |
| THDI（%） | ＜3% |
| Input PF | ≥0.99 |
Bypass Input
| Input voltage | 380V/220V±20%、400V/230V±20%、415V/240V±20% |
| Input frequency | 50Hz±4%, 60Hz±4% |
| Range of Frequency Synchro | 50Hz±4%, 60Hz±4% |
DC Input
| Rated Input voltage | ±384VDC |
| Input voltage tolerance | ±345V～±440V DC |
Battery charging
| Charging current limited | yes |
| Charging ability | 10 hours (2 hours back up) |
| Stability of charging voltage | ±1% |
AC output
| UPS power factor | 0.9 |
| Output voltage | 220V/230V |
| Output frequency | 50Hz±4%, 50Hz±0.2% |
| 60Hz±4%,60Hz±0.2% |
| Output voltage stability | 380V/220V±1% (Static); 380V/220V±2%(load 0~100% change) |
| 400V/230V±1% (Static); 400V/230V±2%(load 0~100% change) |
| 415V/240V±1% (Static); 415V/240V±2%(load 0~100% change) |
| Output voltage recovering time | ＜20ms(load 0~100% change) |
| Overload ability | Operate 10mins with 125% load |
| Transfer from mains to battery supply | 0ms |
| Transfer from bypass to inverter supply | < 10ms |
| Peak factor | 3:01 |
| Waveform distortion | ≤1% ( linear load ), ≤3%( non-linear load ) |
| Overall efficiency | ≥95% (AC~AC), ≥98% (DC~AC) |
| Load share precision | ≤5% |
Operation environment
| Ambient temperature | -25℃～60℃ |
| Operating temperature | -5℃～40℃ |
| Maximum operation altitude | ≤1500m |
| Relative humidity | ≤95% non-cadency |
| Protection degree | IP30 |
| Cooling | Air cooling |
| Applicable safety standards | EN62040-1-1:2003 IEC60950-1:2001 |
| Electromagnetic compatibility | EN62040-2:2006 |
| Acoustic noise | ≤55dB |
Others
| Cabinet size（W×D×H）mm | 600*800*2000 |
| Weight(kg) | 240 |
| Cabinet | Standard 19 inch cabinet |
| Monitor management system | UPSupervisor |
| RS232, RS485 and 8 try contact, TCP/IP adapter, SNMP(optional) | Standard |
| SNMP | Optional |
| Display | LCD/LED |
Advantages
- All individual modules in CMS rackmount UPS system support hot swapping and fault isolation functions, meaning the module will quit the system automatically whenever malfunction is detected. In the meantime, all power modules have automatic load sharing to ensure a reasonable system redundancy and fault-tolerance. So that our CMS UPS system always meets TIER1-4 standards when applying to different sized data centers or server rooms.
- UPS system supports hot swapping function (add or remove when the system is running), you can add or remove power modules according to specific load requirements.
- The UPS system is composed of multiple 25kVA power modules, and you can select appropriate module quantities according to your specific load requirements.
- The system satisfies single phase or three phase input/output mode.
