Industrial Power Supplying UPS System

Industrial UPS systems are typically applied in equipment installed in environments with adverse conditions such as poor ventilation, high humidity, and dust. Considering reliability and cost in the most challenging operating conditions for electrical equipment, UPS 1+1 solutions or modular UPS systems are perfect for industrial sites. Modular UPS is recommended because it adopts modular UPS N+X technology which features higher availability and lower cost than standalone UPS 1+1 solutions.

Industrial Power Supplying UPS System

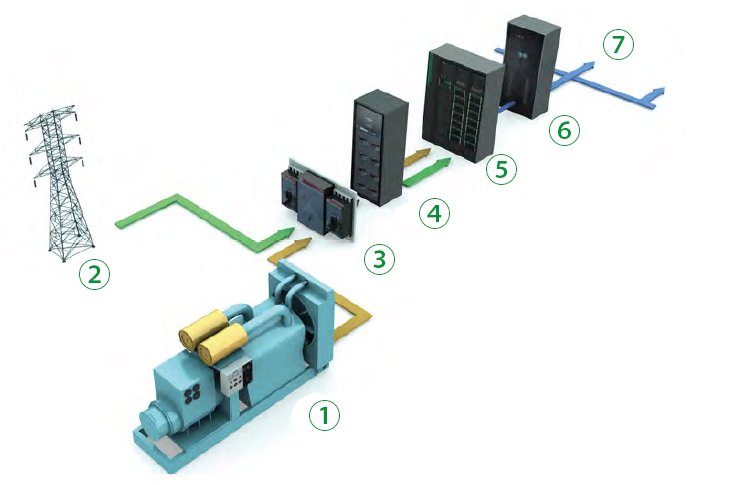

① Generating unit     ② Electric utility (AC)    ③ ATS     ④ Input power distribution cabinet     ⑤ UPS    ⑥ Output power distribution cabinet    ⑦ Dual power load
Availability comparison between standalone UPS 1+1 solutions and modular UPS N+1 solutions
Availability (A(t))
100% Loading 75% Loading 50% Loading
Standalone UPS (MTBF=100,000 hours, MTTR=8 hours) 0.9999 0.9999 0.9999
Power Module (MTBF=100,000 hours, MTTR=0.5 hours) 0.99999 0.99999 0.99999
Standalone UPS 1+1 Solution 0.99999999 (1+1 Redundancy) 0.99999999 (1+1 Redundancy) 0.99999999 (1+1 Redundancy)
Modular UPS 4+1 Redundancy 0.999999998 (4+1 Redundancy) ≈1 (3+2 Redundancy) ≈1 (2+3 Redundancy)
Overall performance comparison between modular UPS and standalone UPS 1+1 solutions
Standalone UPS Standalone UPS 1+1 solution Sicon Modular UPS
Redundancy No 1 N
Reliability Low Medium High
Capacity Expansibility No Difficult and highly risky Simple and zero-risk
Maintainability Over 8 hours Over 8 hours 30 minutes
Maintenance Mode Circuit board and components: on-site repair Circuit board and components: on-site repair Hot swapping of modules
Operation Efficiency 90% 85% 95%
Heat Loss Medium High Low
Power Factor (PF) 0.7~0.9 0.7~0.9 0.99
THDi 10~35% 12~35% ≤ 3%
Comprehensive Cost of Earlier-Stage Purchase Low High Medium
Comprehensive Cost of Later Operation Medium High Low
Cost of Capacity Expansion No capacity expansibility High Low

The modular UPS system adopts a design structure of N+X redundancy. Multiple redundancy means that simultaneous breakdown of one or more modules will not affect the operation of back-end loads, which greatly improves the system reliability.

Modular UPS can also decrease the cost of earlier-stage purchases and later capacity expansion, maintenance and operation, showing high cost performance.

High standard components are adopted, and aging testing is carried out for the whole machine before leaving the factory.

Our power module adopts online hot swapping technology, making capacity expansion, maintenance and upgrading risk free. In the rare case of failure, users can replace it by themselves without manufacturer intervention.

Modular UPS systems are designed with IP30 protection degree and the power module is equipped with a dust proof function. Users can remove dust online through simple and convenient operations.

Therefore, a modular UPS system is the best choice for your industrial power supply.
