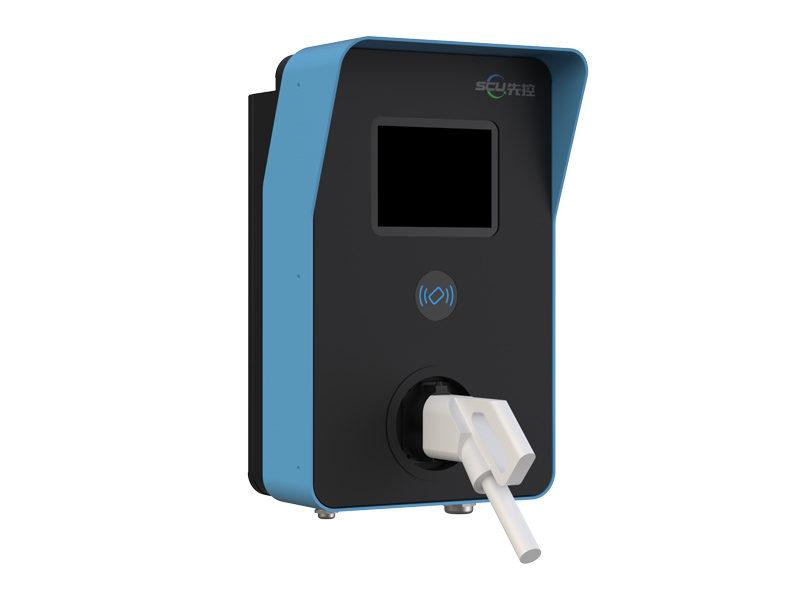

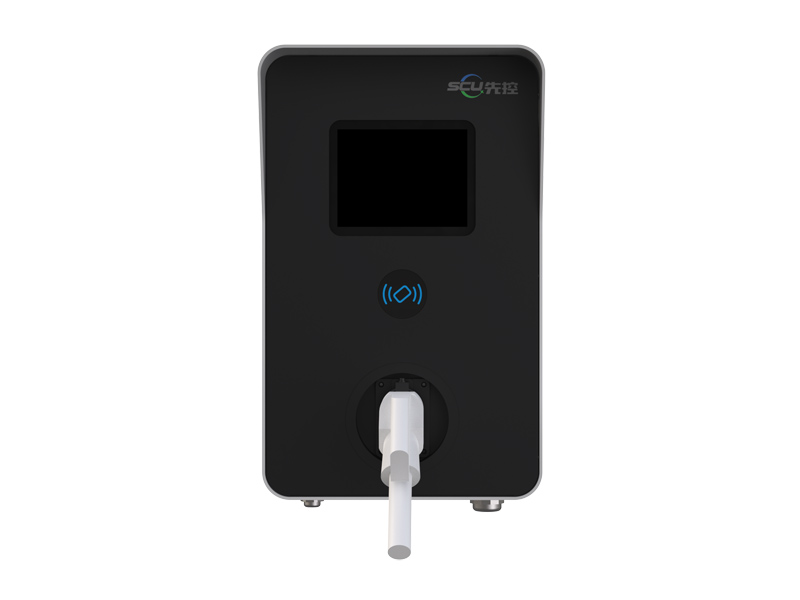

The EVMS wall-mounted DC EV charger supports vehicle charging using CCS and CHAdeMO standards. With up to 30kW of direct current power, this charger can be configured with either a single or dual connector to meet the evolving needs of each customer. Its compact and attractive design is ideal for both indoor and outdoor installations, making it suitable for various environments.
This EV charger is perfect for service areas, highway public charging zones, commercial fleet operators, EV infrastructure operators, electric vehicle garages, and EVSE (Electric Vehicle Supply Equipment) providers. It is compatible with vehicles from manufacturers like BMW, Volkswagen, General Motors, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroën, Kia, Renault, Daimler, Tesla, Smart, and Mercedes.
Model | EVMS-30 |
System capacity | 30kW |
Input parameters | |
Voltage | 400 VAC, P + N + PE |
Voltage range | 304~456VAC |
Power factor | > 0.99 |
Frequency | 50/60 Hz |
Output parameters | |
Connectors | CCS2, CHAdeMO, AC Type 2 |
Voltage range | 50-1000VDC |
Current | Maximum 100A |
Power | 30kW |
Overall efficiency | 95% |
Other parameters | |
Display | 10.4" TFT touch screen |
RFID system | ISO/IEC14443A, MIFARE |
Network connection | 4G | LAN | Wi-Fi(auto switching from LAN to 4G) |
Communication protocols | OCPP1.6J (OCPP 2.0 upgradable) |
Environment | Indoor / outdoor |
Operating temperature | -20℃-60℃ |
Storage Temperature | -40 ºC to +70 ºC |
Operating humidity | 95% non-condensing |
Altitude | 2000 m |
Protection level | IP54, IK10 |
Acoustic noise | < 55 dB |
Compliance and safety | CE, IEC EN 61851, EN 62196,DIN 70121, ISO 15118 |
We need more and more charging stations to keep up with the growth of electric vehicle adoption. Sicon provides complete EV charging solutions for all brands of electric vehicles with different charging options.
