Commercial Electric Vehicle Charging Station

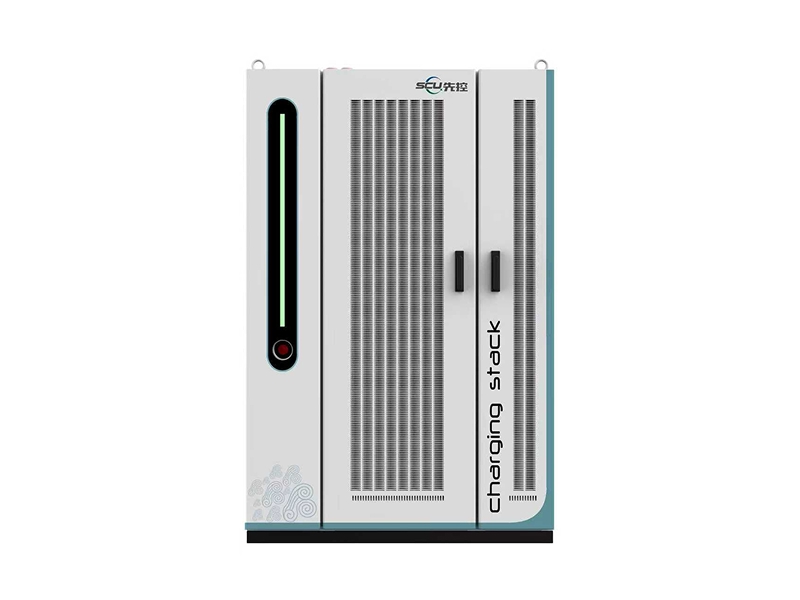

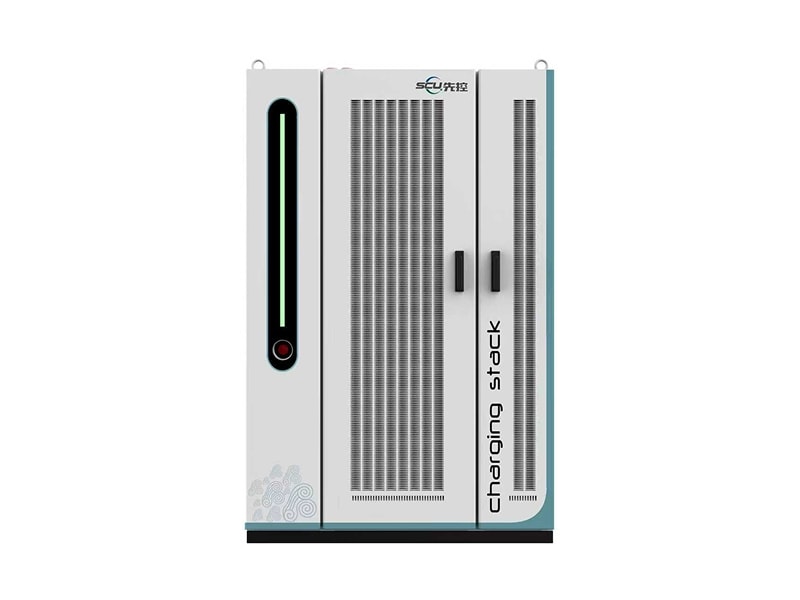

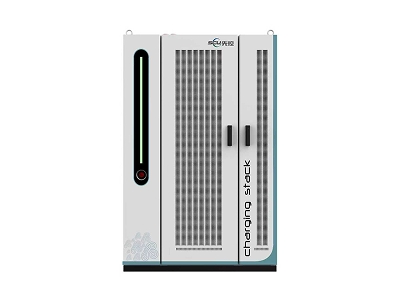

The EVMS series DC charging station is a DC charging system that satisfies multiple charging requirements such as CCS2, CHAdeMO, GB/T and more. The EVMS charging station is modularly designed, and composed of DC charging piles, a control unit and charging terminals. SCU has also developed charging stations for both indoor and outdoor use according to different locations.

Applications

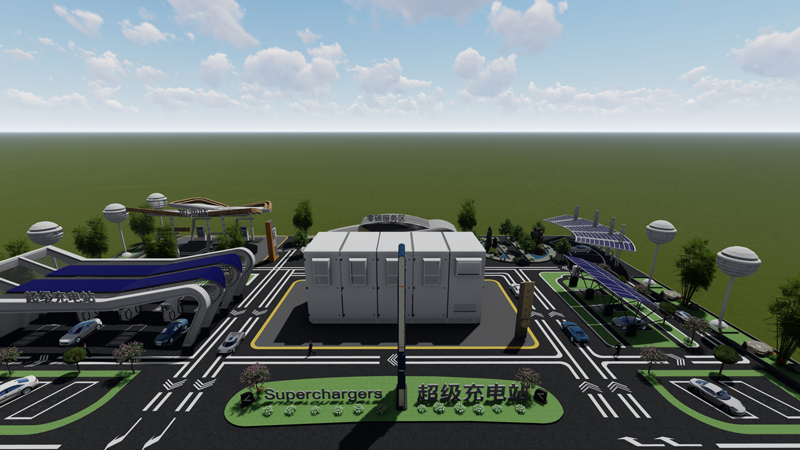

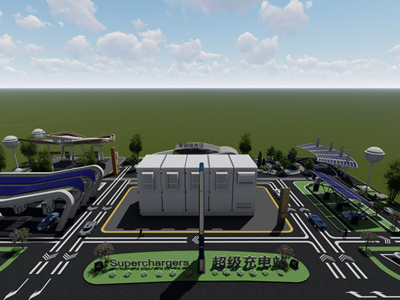

EVMS series charging stations are widely used for EV charging stations, public parking lots, commercial center parking lots and other public infrastructure where multiple DC charging lanes are required.

Advantages
  • Supports multiple charging standards: CCS2, CHAdeMO, GB/T;
  • SCU offers a wide range of output current options, including 200A, 250A, 300A, 400A, or 500A (liquid-cooled).
  • Featuring a 21-inch display that supports charging operation and advertising video
    • playback simultaneously, ensuring a comfortable user experience.
  • Flexible output, automatically adjust according to electric vehicle condition and optimize the charging performance
  • Multiple output methods allow for the simultaneous charge of several electric vehicles, and the output terminal numbers and power is as follows:
    240kW indoor/outdoor charger: optional 2, 4 or 8 charging terminals, each lane has output power of 15kW-60kW or 0-120kW
    360kW indoor charger: optional 2, 6 or 12 charging terminals, each lane has flexible output power of 60kW, 120kW and 180kW

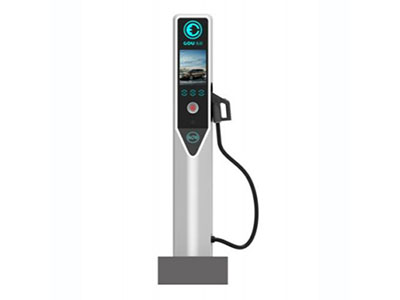

  • Uses a 21 inch LCD/LED touchscreen, realizes real-time display of charging states. The display allows for a simple user guide and easy operation
  • Supports multiple online paying methods
  • Smart flexible power distribution technology allows multiple vehicles to charge simultaneously, which optimizes the charging station’s efficiency and saves investment costs
  • The charging piles have insulation monitoring function, meaning they will automatically disconnect to ensure safe charging when insulation levels are low.
  • High adaptability to different temperature ranges and isolated heat dissipation air ducts. Heat dissipation is separated from the control circuits to ensure totally dust-free performance
Technical parameters
Model EVMS-240 EVMS-320 EVMS-480
Environment Outdoor/indoor
System capacity 240kW 360kW 480kW
Maximum outlets 6 8 12
Output capacity per route 0~120 kW or 0~120 kW 0~160 kW or 0~320 kW 0~240 kW or 0~480 kW
Input voltage   400VAC±20%
Input voltage range 260V-530V (260V-304VAC, output power derating 50%)
Current share precision < 3%
Power factor >0.997
Working frequency 50/60Hz
Output voltage 50VDC-1000VDC
Current regulation accuracy < 1%
Voltage regulation accuracy < 0.5%
Current share precision < 3%
Overall efficiency 97% (power module), 96.5% (system)
BMS auxiliary power supply 12V/10A
RFID system ISO/IEC14443A, MIFARE
Network connection 4G |LAN| Wi-Fi (auto switching from LAN to 4G)
Communication protocols OCPP 1.6J (OCPP 2.0 upgradable)
Operating temperature -35℃~60℃ (-20℃~35℃ heating required)
Storage temperature -40℃~+70℃
Operating humidity ≤95%, non-condensing
Altitude Up to 2000m
Protection degree IP55, IK10
Acoustic noise < 65dB
Compliance & safety CE, IEC EN61851, EN62196, DIN70121, ISO15118, OCPP 1.6 Security Certificate
