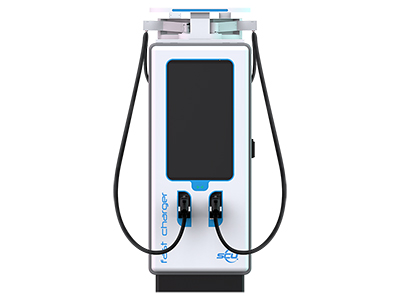

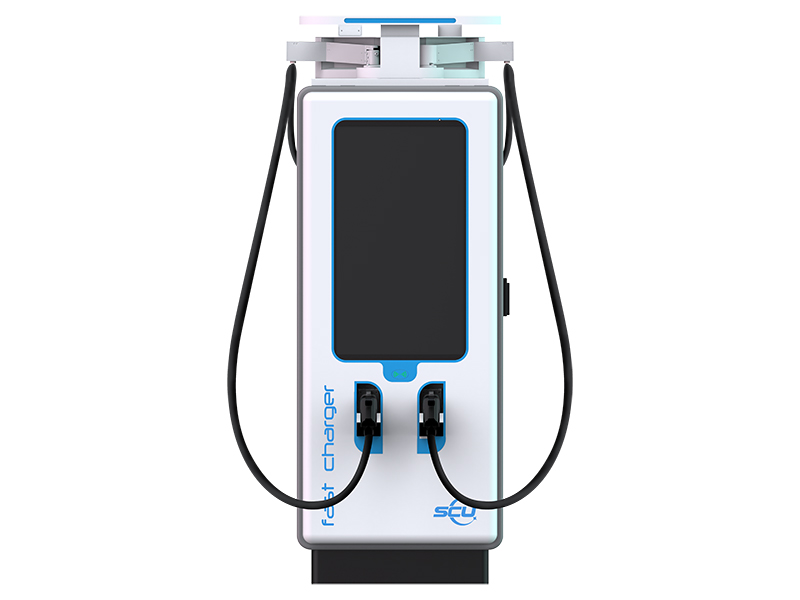

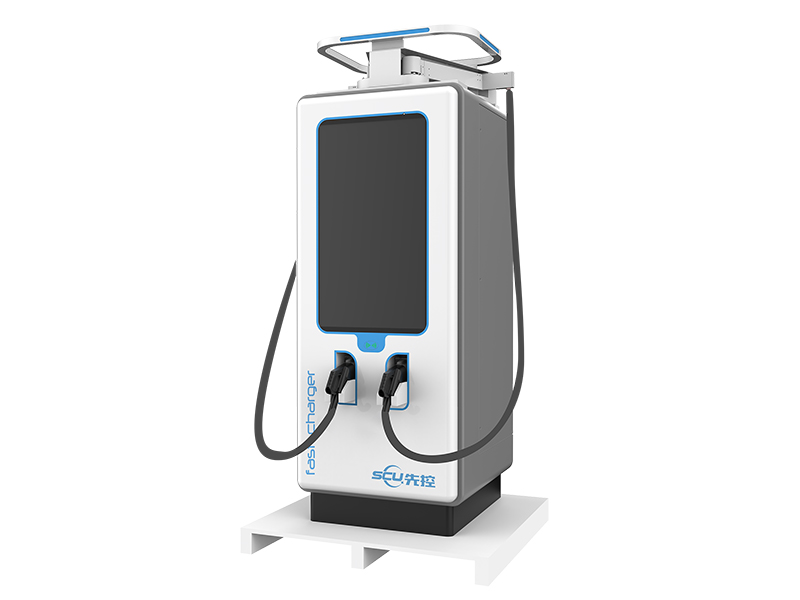

EVMS PRO High Power EV Charging Station

  • EVMS PRO High Power EV Charging Station
  • EVMS PRO High Power EV Charging Station

EVMS PRO features high-power charging (HPC) technology, offering ultra-fast DC charging for electric vehicles. It comes with a smart touchscreen display available in multiple sizes, from 21 to 43 inches, delivering an exceptional user experience. The high power EV charging station provides power from 80 kW to 480 kW, supports dual-connector configurations to accommodate varying charging loads based on demand.

Applications

The EV high power charging station is ideal for highway service areas, commercial fleet hubs, public fast-charging corridors, logistics centers, large commercial complexes, and more.

Compatible Vehicles

Compatible with electric vehicle models supporting CCS2, NACS, or GB/T protocols, including Tesla, Porsche, Mercedes-Benz, BMW, BYD, Audi, Hyundai, and others.

Advantages
  • Up to 97% overall efficiency
  • Max. 760A charging current (300km range in 5 minutes)
  • 150-1000V output voltage range
  • 15/21/32/43 inch advertising screen with interactive touchscreen UI
  • Intelligent power allocation (dynamically adjusts output)
  • Fully compliant with OCPP 1.6J /2.0.1 protocol
Technical parameters
Model EVMS-240 EVMS-480
AC Input
Power connection 3P+N+PE
Voltage range 380 VAC ±20%
Frequency 50 Hz
Rated input current 364 A 727 A 364 A 727 A
Rated current 240 kW 480 kW 240 kW 480 kW
Power factor >0.997
Peak efficiency ≥96.5%
DC Output
Voltage range 50-1000 VDC
Constant power voltage range 300-1000 VDC
Single-gun charging current 250 A 300 A
General
Output method Multi-standard DC output (Mode 4) and AC output (Mode 3)
Interface CCS, CHAdeMO, GB/T, NACS, AC Type 2 (optional)
Display 15-inch/43-inch multi-readable touchscreen (optional)
Card reader ISO /IEC 14443A, MIFARE
Network connection 4G | Ethernet | Wi-Fi
Communication protocol OCPP 1.6J (upgradeable to OCPP 2.0.1)
Environment Indoor/outdoor
Operating temperature -35℃ to 60℃ (-20℃ to 50℃ at rated output)
Storage temperature -40℃ to 70℃
Operating relative humidity ≤95%, non-condensing
Altitude Operates normally within 2000 m; derate according to standards beyond this range
Protection rating IP55
Noise level <55 dB
Dimensions (W×D×H) 800×550×1850 mm 900×900×2000 mm
Compliance and safety CE, EN 61851, EN 62196, DIN 70121, ISO 15118, OCPP 1.6 Full & Security Certificate
