EVMS ONE EV Charging Station with Integrated Battery

  • EVMS ONE EV Charging Station with Integrated Battery
  • EVMS ONE EV Charging Station with Integrated Battery

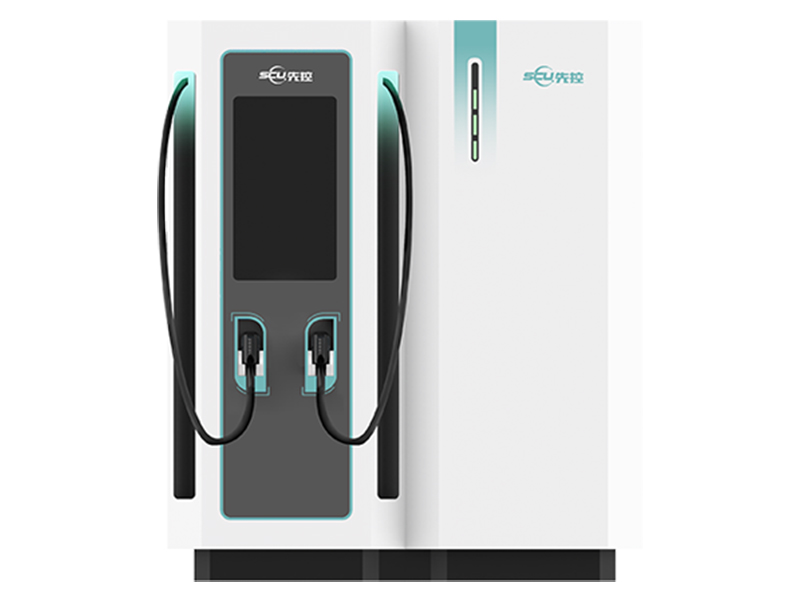

EVMS ONE is an integrated battery storage EV charging system, featuring a built-in LFP (LiFePO₄) battery and PCS module within a single cabinet, providing an efficient and reliable charging solution. It is PV-ready, supporting eco-friendly, zero-carbon operations. The EV charging system enables off-grid charging and peak-valley energy arbitrage, allowing energy storage and charging during low electricity price periods—ideal for reducing energy costs while ensuring reliable charging even in areas with weak grids.

Applications

The EV charging station is suitable for areas with limited power infrastructure, parks with large peak/off‑peak price gaps, temporary event sites, charging station expansion buffer, and emergency energy supply points.

Compatible Vehicles

All electric vehicles compliant with CCS2, CHAdeMO, or GB/T standards (e.g., passenger cars, logistics vehicles, and buses).

Advantages
  • The EV charging station offers off-grid charging without grid constraints, providing flexible charging stations for EV, anywhere.
  • Promoting environmental sustainability with PV integration, enabling zero-carbon EV charging.
  • Intelligent peak shaving with peak-valley arbitrage system, which reduces electricity costs.
  • The battery-integrated EV changer offers modular battery packs for convenient maintenance
Technical parameters

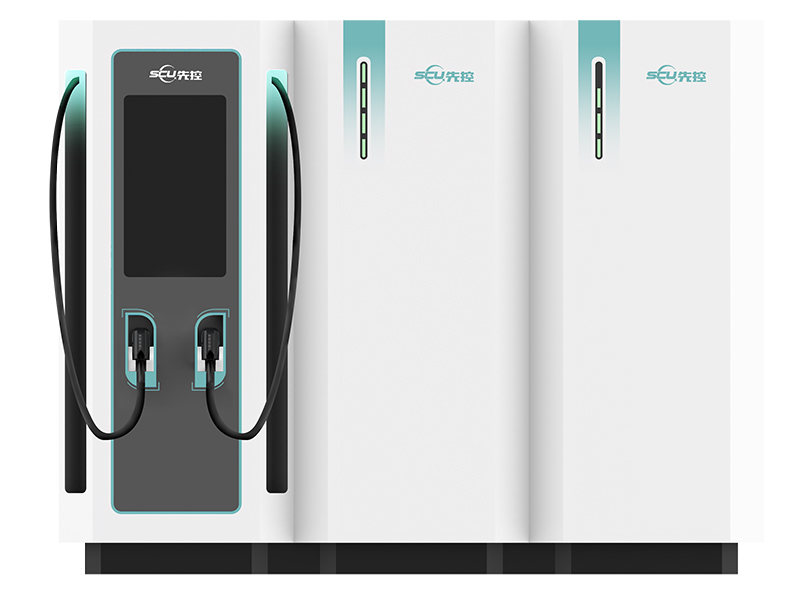

Model EVMS ONE EVMS ONE+
Power range 60kW to 240kW 320kW to 480kW
Housing Galvanized coating steel
Dimensions (H*W*D) (mm) 1900*2200*1000 1900*4400*1000
Input voltage 400V (±10%)
Connectors (NACS, GB/T, CHAdeMO compatible) Dual CCS2 | 250A | 5m cable
Output voltage 300-1000VDC
Battery type LFP
Battery capacity 76.8kWh 76.8kWh*2
Battery voltage 768VDC
Discharge rate 3C
Battery cabinet 1 2
Battery lifecycle 25℃ 2C 80%DOD EOL80% ≥4000 times
Cooling Battery (HVAC) EVSE (air cooling)
Protection IP55
