Micro Data Centers UPS
To satisfy some of our clients using micro data centers, Sicon has launched Genius series micro data center solution to realize UPS system simple installation and flexible expansion.
The Genius micro data center solution is designed with a modular integrated structure, ensuring it is economic and environmental friendly, and helps our clients to achieve a fast installation, flexible expansion and superior operation efficiency. We have two different micro data center UPS systems available for customers according to different air conditioner unit locations.
Advantages
- The modular UPS system supports hot swapping, and allows for easy modification while the system is running.
- The system comes with a monitoring display system; all equipment information is easily managed via remote control or local control.
- The UPS system features a closed enclosure to ensure a dust resistant and low noise performance
- Emergency ventilation system allows for a consistent heat-dissipation.

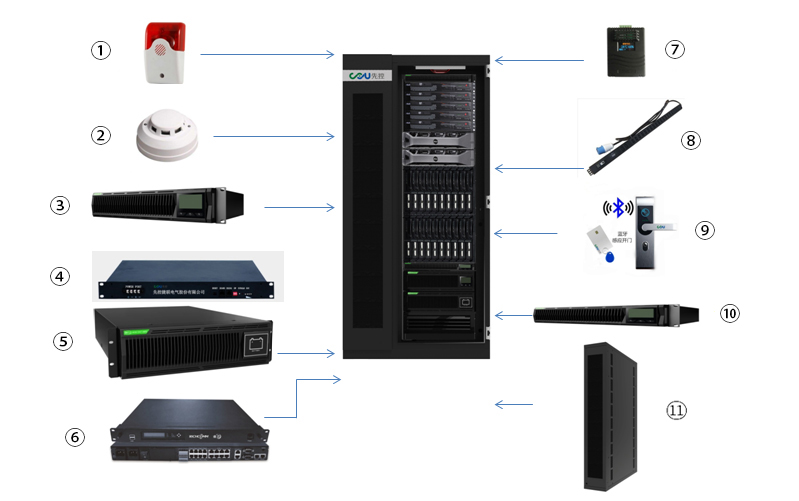

Genius micro data center UPS system
(Integrated air conditioner unit)
Configuration
- ① Audible and visual alarm
- ② Smoke detector (alarm)
- ③ UPS
- ④ Lithium-ion battery
- ⑤ Lead-acid battery
- ⑥ Monitoring main processor
- ⑦ Temperature-humidity sensor
- ⑧ PDU (Power Distribution Unit)
- ⑨ Access control
- ⑩ Direct-current power supply
- ⑪ Air conditioner unit
Technical Parameters of UPS System
Model
| Dimension | 900*1200*2000 |
| Color | Standard black, or other custom colors |
| Ventilation | Standard configuration |
| Available space | 26U |
Air conditioner unit
| Power supply | 220V 50HZ |
| Cooling capacity | 3500W |
| Cold medium | R410a |
| Structure | Side-mount and integrated structure |
| Dimension | 300*1200*2000 |
| Communication port | RS485 |
PDU (Power Distribution Unit)
| Power supply | 220V 50HZ |
| Power module | 63A |
| UPS model | DSP11-3KVA/6KVA |
| Communication power module | Rack-mount, output voltage 48V, output current 40A (Assembly based on needs) |
| Power factor | 0.9 |
| Height | 3U |
| Battery pack model | DUP1204L6 (12V8AH, 12 batteries), Height: 3U |
| Dynamic environment monitoring system | Temperature-humidity sensor, smoke sensor, waterproof, access control, power distribution, AC, UPS and etc. are group monitored or smartphone remote controlled |
| Fire safety | Heptafluoropropane fire extinguishing device (selective assembly) |

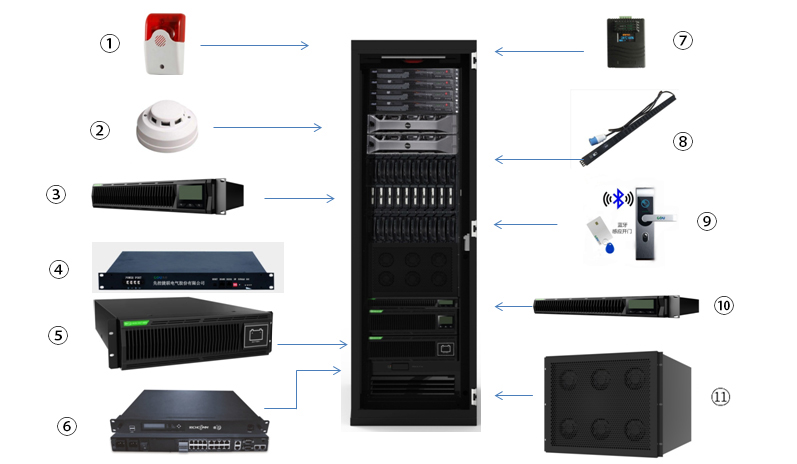

Genius micro data center UPS system
(Rack-mounted air conditioner unit)
Configuration
- ① Audible and visual alarm
- ② Smoke detector (alarm)
- ③ UPS
- ④ Lithium-ion battery
- ⑤ Lead-acid battery
- ⑥ Monitoring main processor
- ⑦ Temperature-humidity sensor
- ⑧ PDU (Power Distribution Unit)
- ⑨ Access control
- ⑩ Direct-current power supply
- ⑪ Air conditioner unit
Technical Parameters
Model
| Dimension | 600*1200*2000 |
| Color | Standard black, or other custom colors |
| Ventilation | Standard configuration |
| Available space | 20U |
Air conditioner unit
| Power supply | 220V50HZ |
| Cooling capacity | 3500W |
| Cold medium | R410a |
| Structure | Rack-mounted and separated structure |
| Dimension | 480*950*6U |
| Communication port | RS485 |
PDU (Power Distribution Unit)
| Power supply | 220V50Hz |
| Power module | 63A |
| UPS model | DSP11-3kVA/6kVA |
| Communication power module | Rack-mounted, output voltage 48V, output current40A (Assembly based on needs) |
| Power factor | 0.9 |
| Height | 3U |
| Battery pack model | DUP1204L6 (12V8AH, 12 batteries), Height:3U |
| Dynamic environment monitoring system | Temperature-humidity sensor, smoke sensor, waterproof, access control, power distribution, AC, UPS and etc. are group monitored or smartphone remote controlled |
| Fire safety | Heptafluoropropane fire extinguishing device (selective assembly) |
