CMS 10kVA UPS, Scalable to 100kVA, 400V, 64pcs Battery
The CMS 10kVA UPS is one of our modular UPS systems. It is a suitable solution for small or medium-sized power required projects. The CMS 10kVA UPS has a compact structure (floor area 0.48㎡), reliable performance and necessary redundancy. Each module has a power of 10kVA and can be upgraded to 50kVA or 100kVA UPS systems according to your specific circumstances.

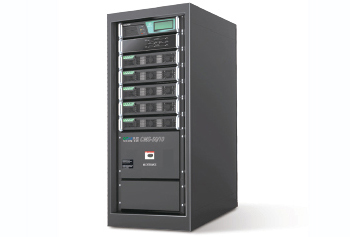

CMS-50/10 UPS System
- Maximum power：50kVA
- Power module model：CM10
- Module power：10kVA
- Direct voltage: ±384V
- Dimension: 600*800*1200mm (W*D*H), standard 19 inch cabinet
- Weight: 120kg

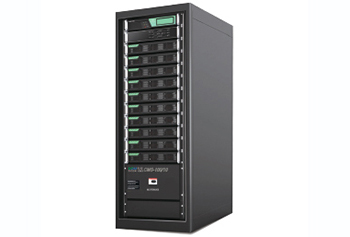

CMS-100/10 UPS System
- Maximum power：100kVA
- Power module model：CM10
- Module power：10kVA
- Direct voltage: ±384V
- Dimension: 600*800*1600 mm (W*D*H), standard 19 inch cabinet
- Weight: 150kg
UPS System Technical Parameters
Module
| Module model |
CM10 |
| Module power |
10kVA |
| Rated input voltage |
±384VDC |
| Power connection |
3/3 phase |
| Module dimension (W*D*H)mm |
482×465×89 |
| Weight (kg) |
Approximate 16 kg |
| Module charging |
Each module provides 2.5kW charging power |
| Input power factor |
≥0.99 |
| Overload ability |
Exceeds system overload requirements |
| Maximum heat dissipation power |
475w |
| THDI (%) |
≤3% |
Mains Input
| Input mode |
3-phase +N +E, 1-phase +N +E |
| Input voltage |
380V/220V±20%, 400V/230V±20%, 415V/240V±20% |
| Input frequency |
50Hz±10%, 60Hz±10% |
| Power woke-in (Sec.) |
60sec |
| THDI (%) |
＜3% |
| Input PF |
≥0.99 |
Bypass Input
| Input voltage |
380V/220V±20%, 400V/230V±20%, 415V/240V±20% |
| Input frequency |
50 Hz, 60 Hz |
| Range of Frequency Synchro |
50 Hz±4%, 60 Hz±4% |
DC Input
| Rated Input voltage |
±384VDC |
| Input voltage tolerance |
±345V~±440V DC |
Battery Charging
| Charging current limited |
yes |
| Charging ability |
10 hours (2 hours back up) |
| Stability of charging voltage |
±1% |
AC Output
| UPS power factor |
1 |
| Output voltage |
380V/220V AC, 400V/230V AC, 415V/240V AC |
| Output frequency |
±4%;±0.2% (battery supply) |
| Output voltage stability |
±1% |
| Output voltage recovering time |
＜20ms (load 0~100% change) |
| Overload ability |
Operate 10mins with 125% load |
| Transfer from mains to battery supply |
0ms |
| Transfer from bypass to inverter supply |
< 1ms |
| Peak factor |
3:01 |
| Waveform distortion |
≤1% ( linear load ), ≤3%( non-linear load ) |
| Overall efficiency |
≥95% (AC~AC), ≥98% (DC~AC) |
| Load share precision |
≤5% |
Operation Environment
| Ambient temperature |
-25℃～60℃ |
| Operating temperature |
-5℃～40℃ |
| Maximum operation altitude |
≤1500m |
| Relative humidity |
≤95% non-cadency |
| Protection degree |
IP30 |
| Cooling |
Air cooling |
| Applicable safety standards |
EN62040-1-1:2003 IEC60950-1:2001 |
| Electromagnetic compatibility |
EN62040-2:2006 |
| Acoustic noise |
≤55DB |
Others
| Cabinet |
Standard 19 inch cabinet |
| Monitor management system |
UPSupervisor |
| Interface |
RS232, RS485 and 8 try contact, TCP/IP adapter, SNMP(optional) |
| Display |
Touch LCD/LED Screen |
