EVMS-360 High Power Ultra Fast Charging Station

This product has been discontinued and removed from our shelves.
  • EVMS-360 High Power Ultra Fast Charging Station
  • EVMS-360 High Power Ultra Fast Charging Station
  • EVMS-360 High Power Ultra Fast Charging Station

The EVMS-360 high power ultra-fast charging station is a newly launched charging station designed to satisfy the latest generation electric vehicles with ultra-fast high power charging requirements.

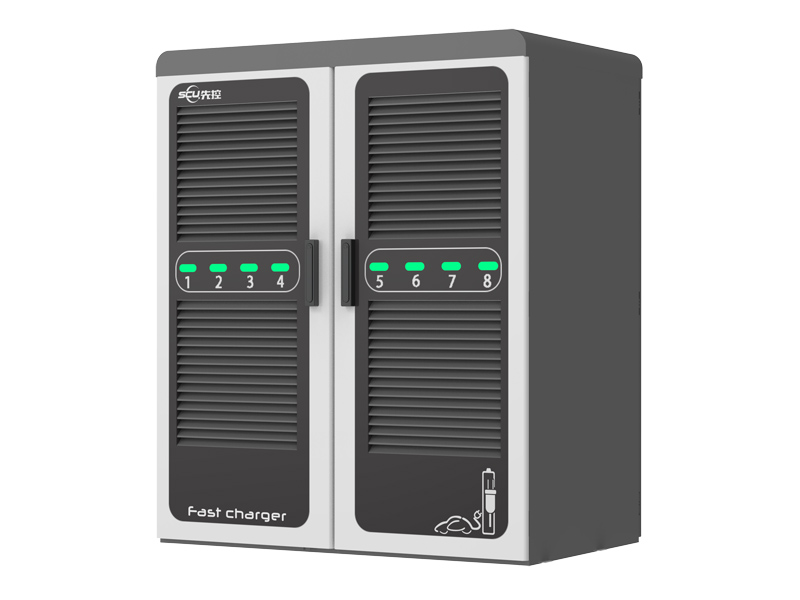

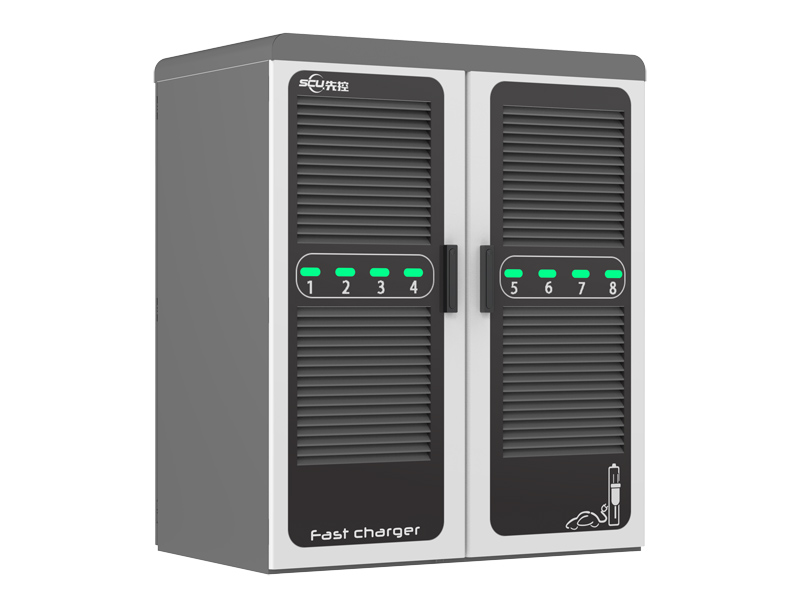

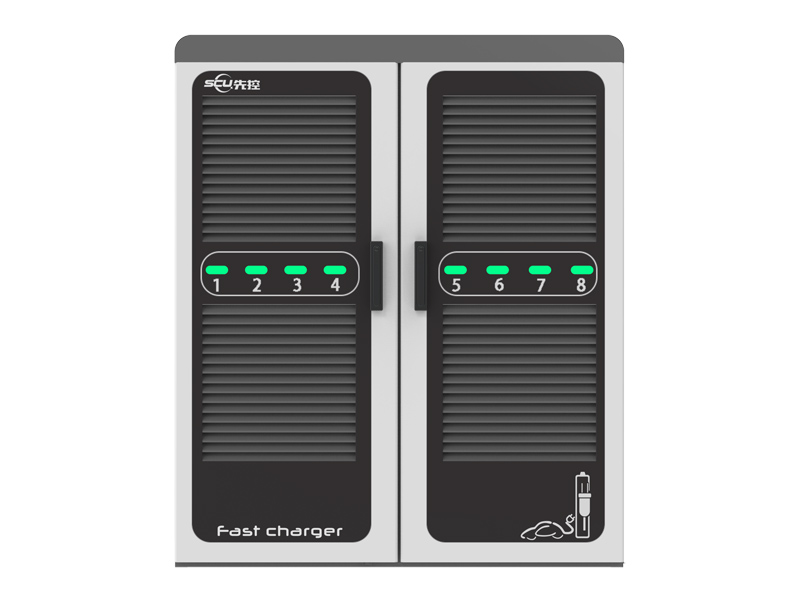

This ultra-fast charging station has a power of 360kW, and is composed of 1 power supply cabinet and 2 charging terminals.

Applications

Public infrastructures such as highway rest areas, gas stations, parking lots, airports, bus stations and more

Applicable vehicles

E-bus or luxury EVs equipped with ultra-large capacity batteries.

Advantages
  • Applies to all current and next generation EVs
  • Modular designed structure, the power supply cabinet has a power range from 360kW to 500kW
  • The charging terminals are removable with furthest distance of 150m
  • Wide voltage range: 150V-1000V
  • Supports 500A liquid cooled CCS charging cables and connectors
  • TFT (thin film transistor) touchscreen
  • RFID (radio frequency identification) authorization required
  • Low operating noise Customization according to specific requirements
Technical parameters
Model EVMS-360
AC input
Power connection 3P + N + PE
Voltage range 400 Vac ± 20 %
Frequency 50 Hz or 60 Hz
Power factor > 0.99
Overall efficiency 95%
DC output
Output voltage 150Vdc to 1000 Vdc
Output current 360A
Rated output power 360 kW
General Specifications
Combo DC output（Mode-4）
DC-interface CCS2
Display 12.1" TFT color touchscreen
RFID system ISO/IEC14443A/B, Mifare
Network connection 3G (GSM or CDMA) | LAN | Wi-Fi
Communication protocols OCPP 1.6
Environment Indoor/outdoor
Operating temperature -35ºC-60ºC ( -20ºC to -30ºC, heating required)
Storage temperature -40 ºC to +70 ºC
Operating humidity ≤95% non-condensing
Altitude Up to 1000m
Protection level IP54 , IK10
Acoustic noise < 55 dB
Dimension (W*D*H)mm Power supply cabinet:1300*750*1950mm Charging terminals: 320*280*1740mm
Compliance and safety EN 61851, EN 62196, DIN 70121, ISO 15118
