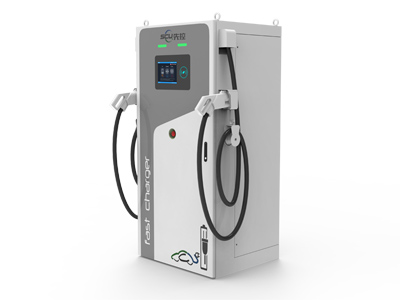

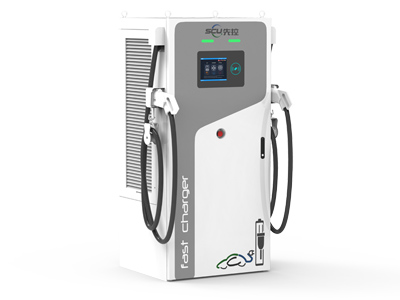

EVDS Series GB/T DC Fast Charging Station

  • EVDS Series GB/T DC Fast Charging Station
  • EVDS Series GB/T DC Fast Charging Station

The EVDS BG/T series is an intelligent, integrated DC fast charging station, comprised of the monitoring unit, power distribution unit, and power modules, with an overall power range of 30 to 360kW.

The EVDS series DC fast charging stations are also designed with emergency protection and alarm functions to ensure safety.

Applications

Public infrastructures such as highway rest areas, gas stations, airports, parking lots, bus stations, freight stations and etc.

Applicable vehicles

Electric vehicles, E-buses, trucks and other fast chargeable vehicles.

Advantages
  • Wire power range: 30kW-360kW, realizes single, dual or quadra outlet charging at the same time.
  • Wire power range: 30kW-360kW, realizes single, dual or quadra outlet charging at the same time. Three modes when charging with dual outlets: equalizing charge (each charging outlet shares equal power), rotational charge (maximum power on one charging outlet, and take turns), and flexible charging (power is flexibly distributed).
  • Compact structure for easier transportation and installation, takes less land space.
  • Output voltage range: 200V-500V; 300V-750V (adjustable).
  • High adaptability for temperature ranges and isolated heat dissipation air ducts. Heat dissipation is separated from the control circuits to ensure a totally dust-free performance.
  • Wide AC input range, and high adaptability to different utility grids, 3 phase 3 wire input without null line.
  • TFT color touchscreen for easier operation
  • Emergency protection and alarming function
  • Charging protection function: the charging process will suspend automatically in the event of a BMS communication malfunction, disconnection, battery over temperature, or over voltage
  • Emergency stop function
  • Multiple communication interfaces: CAN, RS485/RS232, Ethernet, 3G, 4G wireless networks to access operation management platform
  • The charging piles have an insulation monitoring function and will automatically disconnect to ensure a safe charging when the insulation level is low.
Technical parameters
Model Floor Type DC Station
  EVDS-500/360 EVDS-500/180 EVDS-500/120 EVDS-500/60 EVDS-500/30
EVDS-750/360 EVDS-750/180 EVDS-750/120 EVDS-750/60 EVDS-750/30
System capacity 360kW 180kW 120kW 60kW 30kW
Module capacity 15kw
Input
Rated input voltage 380VAC
Range of input voltage 260V~530V (260~304VAC, output power derating 50%)
Input frequency 50/60Hz; Range: 45Hz~65Hz
Input harmonic current component <3%
Input power factor ≥0.99
Initial inrush current ≤ 110% peak current when operating
Output
Output voltage 200VDC-500VDC / 300VDC-750VDC
Output voltage tolerance ≤0.5%
Output current tolerance Current≥30A, ≤1%; Current < 30A, ≤0.3A
Current regulation accuracy ≤1%
Voltage regulation accuracy ≤0.5%
Peak to peak noise voltage of DC output ≤0.5% (0MHz-20MHz)
Soft start time 3-8s
Overall efficiency ≥95%
BMS auxiliary power supply 12V/10A
Network connection Ethernet, CAN/RS485, 3G/4G
Charging mode Automatic charging or manual charging (optional)
Protection level IP55 (outdoor)
Acoustic noise ≤50dB
Operating temperature -20℃~60℃
Operating humidity ≤95% non-condensing
Altitude range ≤2000 meter; derating above 2000 meter
Dimension (W*D*H) 1300*750*
1950mm
650*750*
1950mm
960*450*
1950mm
600*450*
1850mm
450*450*
1750mm
