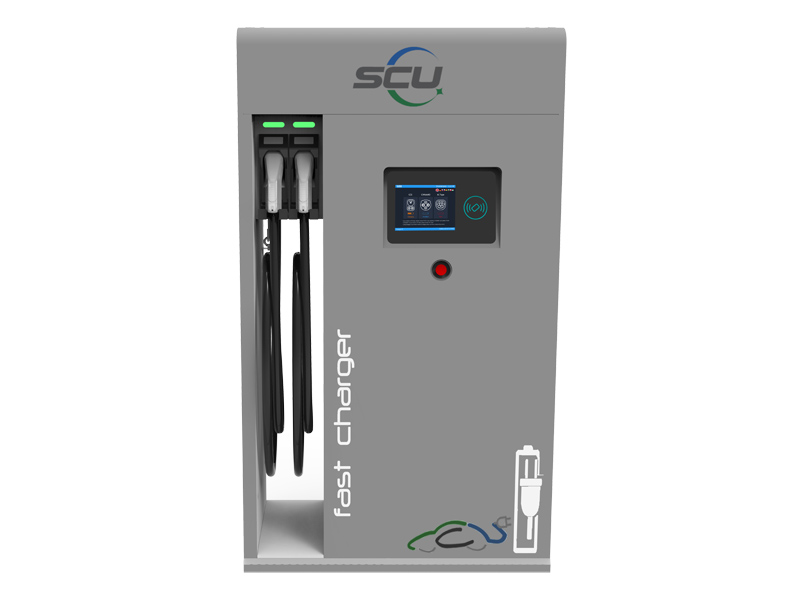

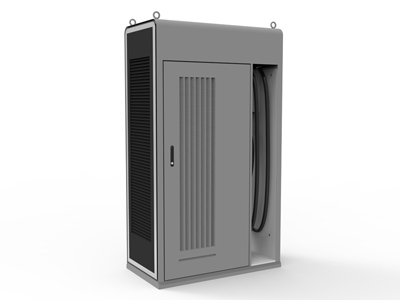

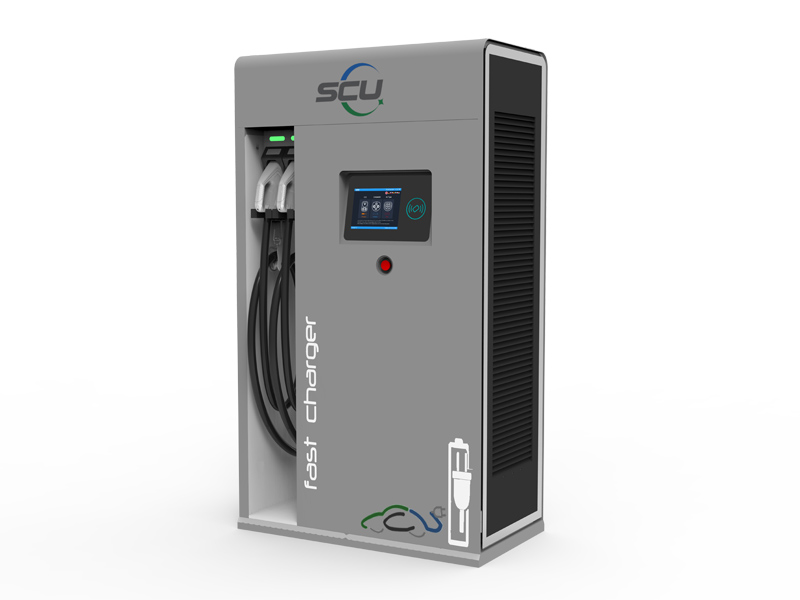

EVMS50/EVMS150 CCS CHAdeMO DC Fast Charging Station

  • EVMS50/EVMS150 CCS CHAdeMO DC Fast Charging Station
  • EVMS50/EVMS150 CCS CHAdeMO DC Fast Charging Station
  • EVMS50/EVMS150 CCS CHAdeMO DC Fast Charging Station

The EVMS series DC fast charging station is able to quickly charge all current and newest generation electric vehicles that satisfy CCS (combined charging system), CHAdeMo and AC Type 2 protocols.

Sicon provides charging stations in a variety of power levels for customers to choose from. Our 60kW charging station has a flexible default design configuration, available in single, dual, or triple outlets to meet a variety of charging needs.

Our 100kW and 150kW charging stations are able to quickly charge electric buses and other high powered vehicles as long as they satisfy CCS (combined charging system) protocols.

The EVMS series DC fast charging station is CE certified, and meets EN 61851, EN 62196, CHAdeMO 1.2, ISO 15118, and DIN 70121 standards.

Applications

Public infrastructures such as highway rest areas, gas stations, parking lots, airports, bus stations and more
Private applications such as EV dealers, rentals and more

Applicable vehicles

BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes.

Advantages
  • Multiple outputs: DC power up to 60kW, AC power up to 53kVA
  • Supports simultaneous output using both CCS and CHAdeMO connector
  • 100/150kW charging station also supports CCS (combined charging system) protocol
  • TFT (thin film transistor) touchscreen
  • Supports remote system management and upgrading
  • RFID (radio frequency identification) authorization required
  • Low operating noise Customizing according to specific requirements
Possible configurations
60kW charging station
Product type 500VDC 500VDC + 400VDC
CCS2 60kW DC/CHAdeMO 60kW DC/AC 43kw default
CCS2 60kW DC/CHAdeMO 60kW DC/AC 22.1kW optional
CCS2 60kW DC/CHAdeMO 60kW DC
CCS2 60kW DC
CCS2 60kW DC/AC 43kW
CCS2 60kW DC/AC 22.1kW
CHAdeMO 60kW DC
CHAdeMO 61kW DC/AC 43kW
CHAdeMO 61kW DC/AC 22.1kW
100kW charging station/150kW charging station
Product type 750VDC 1000VDC
100kw, CCS2 single connector default optional
100kw, CCS2 dual connector optional
150kw, CCS2 single connector default
150kw, CCS2 dual connector optional
200kW charging station/300kW charging station
Product type 750VDC 1000VDC
200kw, CCS2 dual connector default optional
300kw, CCS2 dual connector optional
Technical parameters
Model EVMS-60 EVMS-100 EVMS-150
AC input
Power connection 3P + N + PE
Voltage range 400 Vac ± 20 %
Frequency 50 Hz or 60 Hz
Rated input current & power 87 A, 60kW 145A, 100kW 217A, 150kW
Power factor > 0.99
Overall efficiency 95%
DC output
Output voltage 200VDC to 500 VDC 200VDC to 750VDC
Output current 120 A 140A 200A
Rated output power 60 kW 100kW 150kW
AC output
Output voltage 400 VAC - -
Output current 63 A - -
Rated power 43 kVA - -
General Specifications
Output mode Multi-standard DC outputs (Mode-4), with AC (Mode-3) DC outputs (Mode-4)
DC-interface CCS2, CHAdeMO CCS2 CCS2
AC-interface Type 2 Plug 43kW(default) Type 2 Plug 22kW(optional) Type 2 Socket22kW(optional) - -
Display 10'' TFT Color screen
RFID system ISO/IEC14443A/B, Mifare
Network connection 3G (GSM or CDMA) | LAN | Wi-Fi
Communication protocols OCPP 1.6
Environment Indoor / outdoor
Operating temperature -35ºC-60ºC ( -20ºC to -30ºC, heating required)
Storage temperature -40 ºC to +70 ºC
Operating humidity ≤95% non-condensing
Altitude Up to 1000 m
Protection level IP54 , IK10
Acoustic noise < 55 dB
Dimension (W*D*H) 730*500*1850 mm 960*450*1950 mm
Compliance and safety CE EN 61851, EN 62196, DIN 70121, ISO 15118
